Die-casting molds for aluminum are sophisticated equipment used to produce intricate and precise metal parts. At extreme pressure, molten aluminum is injected during this industrial process into a hollow mold. The cover and ejector half comprise the aluminum die-casting mold manufactured from steel. These two halves are designed to fit together precisely and form the mold cavity in which the molten aluminum is injected.
The cover half contains the sprue, a channel allowing the molten aluminum to enter the mold cavity. The ejector half includes the ejector pins that help to remove the finished part from the mold cavity.

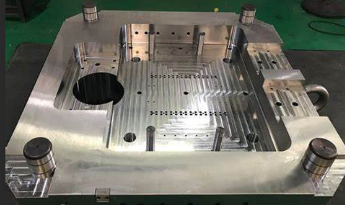

Custom Die-casting Aluminum Mold
They are tools used in casting, a production method to manufacture consistent and high-precision metal components. High pressure drives molten iron into a die cavity in this process. The metal solidifies and shapes itself to the casting to produce a solid object.
Specifically designed die-casting aluminum molds make one-of-a-kind items with specific geometries and properties. The molds are typically formed using various techniques, such as EDM or CNC, and are frequently constructed of metals or other robust materials.
Because they regulate the final version and clarity of the components produced, molds are crucial to the die-casting process. The process’s overall success and cost-effectiveness depend on several elements, including the durability and quality of the molds.
The Production Process of Custom Aluminum Die-casting Molds
These molds are typically produced using the following production process:
● Design
The first step of designing is creating a 3D mold model using specialized software. It will typically incorporate the requirements for any coolant, gating, and ejection systems, as well as the specs of the part that will be manufactured.
Designing the tooling required to build the mold is the following stage after the mold design is finished. The mold chambers and other essential components will be fabricated using CNC machines.
● Casting
After the tooling is finalized, the mold needs to be made. It is accomplished by the casting process, in which molten metal is poured into the mold cavity and given time to cool and solid. Following the casting of the mold, it is next machined to the desired specifications.
● Finishing
The mold is completed with any required coatings or treatments after finishing the machining. It could involve plating or polishing for the mold’s surface finish to be improved.
● Inspection

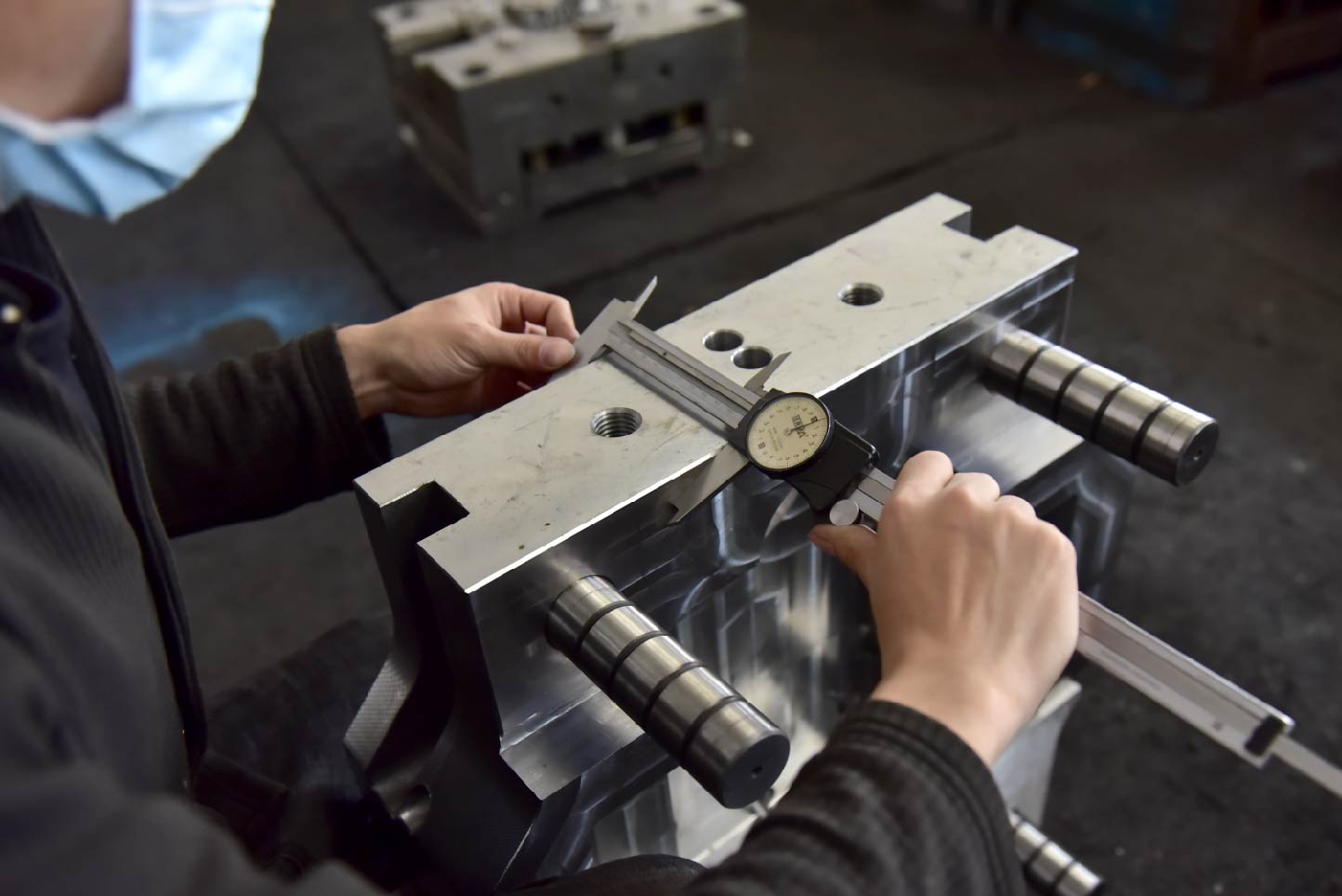

A comprehensive inspection is required to confirm that the mold satisfies all requirements before it can be used for production. It entails inspecting the mold’s dimensions, surface quality, and other features to ensure it will manufacture parts that adhere to the requirements.
● Testing
Raising the caliber of the parts produced may entail modifying the mold’s design or the manufacturing procedure. The mold is prepared for production once it has been tested.
The Use of Custom Aluminum Die-casting Molds in the Manufacturing Process
Tailored aluminum die-casting patterns are essential to manufacturing various goods, including consumer goods, electronics, and automobile parts.
Die casting is a type of manufacturing in which molten metal is pumped into a mold cavity under intense pressure, cooled, and hardened to create a part or component. The use of this casting to make components with precise forms and high quality is growing in popularity since it is fast and affordable.
Die-casting molds of aluminum are built specifically for a given item or component. Because each item is uniform and of the highest quality, manufacturers may produce parts with exact measurements and detailed features thanks to customized molds.
Although various materials can be used to create molds, aluminum is a standard option because of its toughness, heat resistance, and ease of machining.
The Benefits of Custom Die-casting Aluminum Mold
Durability
Since aluminium is a durable, strong material, die-casting molds can withstand intense pressures and temperatures. Due to their ability to tolerate wear and tear, they also have a longer lifespan than other varieties of mold.
High Precision
These molds can be produced to extremely accurate specifications, always matching the highest requirements. This degree of accuracy is crucial in fields like automotive, medical equipment, and aerospace manufacturing.
Flexibility
Because they can be created to create a wide variety of components with various shapes, sizes, and features, custom die-casting aluminum molds provide substantial versatility. Because they can create a variety of goods from a single mold, businesses can lower production costs overall.
Cost-Effective
Because they enable producers to make large quantities of parts swiftly and effectively, custom aluminum die-cast molds are typically more affordable than other manufacturing techniques.
Compared to other manufacturing processes like machining or metal injection, aluminum die casting often has cheaper production costs, aiding businesses in cutting expenses and boosting earnings.
Problems With Custom Aluminum Die-casting Molds
Custom aluminum die-casting molds have several drawbacks, including the following:
Low Adaptability
Modifying the model or specs might be expensive and complex once the mold has been formed.
Costs Associated With Upkeep and Repairs
Over time, custom aluminum die-casting molds may need maintenance or repairs, which can raise the overall cost of production.
Lead Time
It takes time to create a unique mold for die-casting aluminum mold, from a few weeks to several months. It could be an issue if you want to launch your product as soon as possible.
Size Restrictions
If you need to produce larger products, using a custom mold for die-casting aluminum may be difficult due to size restrictions.
A Limited Selection of Materials
Since aluminum die-casting molds are only intended for use with aluminum, the variety of materials used in manufacturing may be constrained.
Environmental Issues
The production process may harm the environment due to the energy and materials needed to make aluminum die-casting molds. Also, the waste produced throughout the procedure can raise some questions.
Conclusion
Durability, precision, cost-effectiveness, and adaptability are just some of the benefits custom die-casting aluminum molds offer. They play a crucial role in the aluminum die-casting procedure.
Although having certain potential drawbacks, such as complexity, a restricted range of material selections, size restrictions, and finishing options, they are nevertheless a popular alternative for manufacturers seeking to efficiently and economically make high-quality parts.
