When it comes to making metal pieces with exact specifications, die casting is a go-to technique.
The die-casting gate and overflow systems are vital to successful this process. These components aren’t just structural elements in the mold, but they’re also super important in making sure the whole manufacturing process is top-notch in terms of quality, efficiency, and cost-effectiveness.
In this article, we will dive into the importance of die-casting gate & overflow, how they affect the final product, and the main principles behind their design. So, let’s get into it!

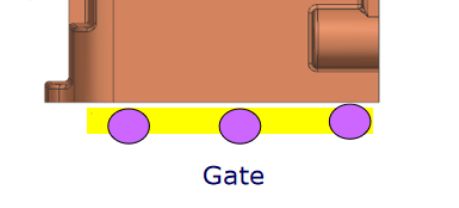

What is a Gate in Die Casting?
This gate is an integral part of the mold system in die casting. Its primary function is to allow molten metal into the mold interior and shape it into the final product. The purpose of the gateway is to introduce liquid metal into the mold. The gate’s design and placement are crucial in determining how well it works during die casting.
There is a significant impact on how molten metal flows, exerts pressure, and fills the mold if the gate is the right size, location, and design. Choosing the right gate design will ensure that die casting is consistent and defect-free. The gate must be selected carefully To achieve precision and careful planning.
Types of Gates
Gates allow hot metal to flow into the mold. Choosing the correct type of gate influences the quality and efficiency of your die-casting process. Here are some common gate types:
Sprue Gate
In short, the sprue gate serves as the main entrance for hot metal into a mold. Usually, it is located high up in the mold and connects to the runner system. How fast and how much metal flows depends a lot on how large and how well the sprue gate is designed.
Runner Gate
Once the hot metal passes through the sprue gate, it flows into the runner gate. The runner gate acts as a bunch of channels distributing the metal throughout all the mold’s holes. The runner gate must be designed correctly to ensure the meta evenly spreads throughout the mold and fills it nicely.
Parting Line Gate
A parting line gate enables the mold halves to come together. Symmetrical parts benefit significantly from it, as it aids in achieving balanced filling.
Subgate
Subgates allow controlled metal flow and are often used in molds to make fancy parts. They are right on the parting surface, which is excellent for funky-shaped details.
The Fan Gate
This is like a vast gate that spreads out from a central point, which makes working in large mold spaces much more manageable. It’s also beneficial for parts with thin walls.
Each type of gate has its advantages and is chosen based on the specific requirements of the part. Selecting and designing the gate system right is vital to ensure the die-cast parts turn out top-notch and on point.
Design Considerations
Gate Size: Each type of gate has its advantages and is chosen based on the specific requirements of the part. Smaller gates produce higher pressure and may lead to defects, while larger gates can result in excessive turbulence.
Gate Location: The location is essential to achieve uniform cavity filling in the mold. It would be best to consider the part’s geometry and the path of least resistance.
Gate Shape: Different gate shapes, such as round, rectangular, or trapezoidal, can affect the flow of molten metal. The choice depends on the part being cast.
How to Design the Gate of Die Casting Mold?
For optimal casting process success, die-casting mold gates should take into account the following factors:
- Analyze Part Geometry:The initial step in the casting process involves analyzing the part’s geometry. The geometry of the part determines the type of gate and its optimal placement.
- Material Selection: It may be necessary to utilize various gating techniques depending on the type of metal used To enhance flow efficiency and minimize defects.
- Flow Simulation:Use advanced software to simulate molten metal flow through the gate system. This optimization process helps in the reduction of defects by optimizing the gate’s size, shape, and location.
- Runner System Design:The runner system efficiently delivers molten metal by linking the gate to the mold cavities. It is critical to maintain proper balance to prevent uneven filling and shrinkage defects.
- Venting: Proper ventilation is essential for releasing air and gas during the filling procedure. Correctly positioned vents can prevent the entrapment of air, thereby reducing the occurrence of porosity in the end product.
This consideration is crucial to the design of gates to ensure that metal is distributed evenly, flaws are minimized, and a high-quality die-cast part is produced.

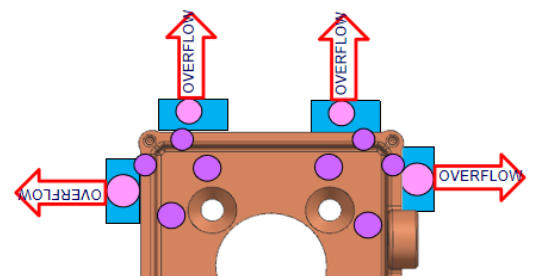

What is An Overflow in Die Casting?
During the filling process of a die-casting mold, an overflow well, also known as an overflow chamber, is a critical component, allowing the excess molten metal to be collected and preventing air or gas from escaping. As a safety mechanism, it maintains the casting’s integrity.
How to Design the Overflow of Die Casting Mold?
- Determine Overflow Location: It is essential to position the overflow to collect surplus metal without interfering with the gate system or the part’s geometry.
- Size and shape:A connection must be made between the overflow chamber and the runner system, and the size and shape of the overflow chamber must be able to accommodate any surplus metal.
- Venting: Overflow chambers must have proper venting to prevent metal from entering the overflow chamber before it is supposed to.
- Flow Simulation: Utilizing flow simulation software in the same way that gates are utilized can assist in optimizing overflow design.
Conclusion
The right gate and overflow plan will help you create better parts, save money, and reduce production time. Die casting begins with a well-thought-out plan for success. By paying attention to the gate and overflow design, you can create accurate parts and make die casting a reliable and cost-effective method of creating complex metal components.
