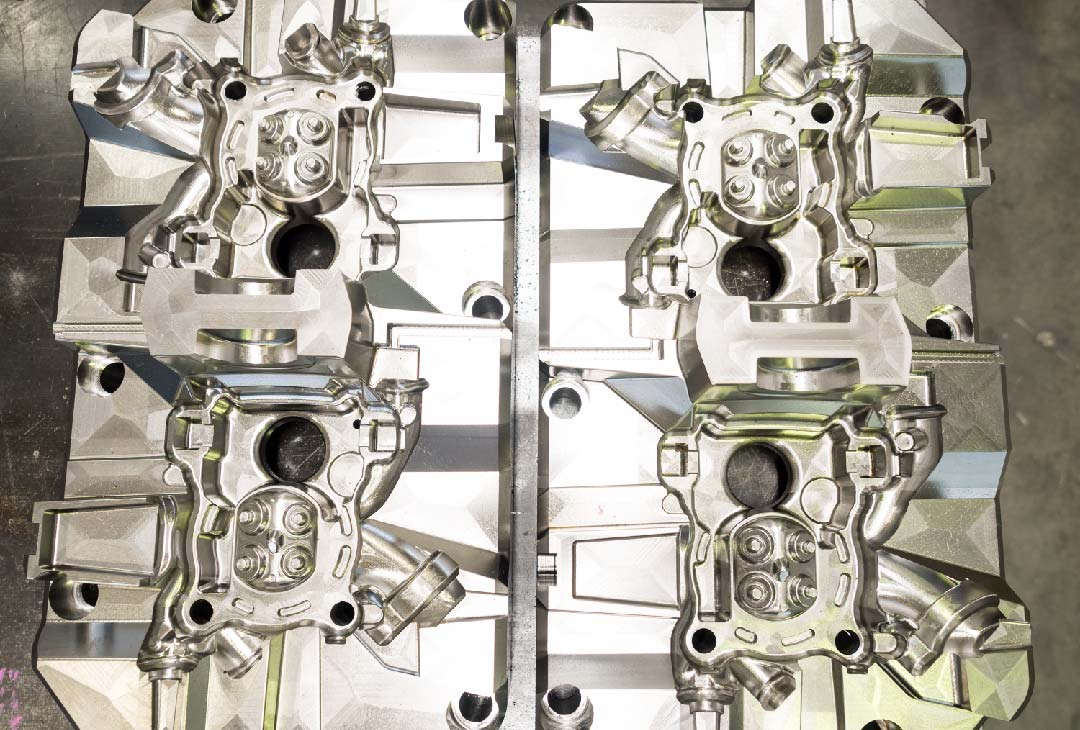

Mold design plays an integral role in aluminum die casting, as it provides an essential form for the molten metal to take shape. From the size of the cavity to the shape of the runners, every detail must be carefully crafted to ensure the desired outcome.
Proper configuration of the cavity and gating system must be considered to maximize the efficiency of the metal flow. Furthermore, aluminum die-casting mold design can directly influence the quality of the components produced, such as dimensional accuracy and surface finish.
The Impact Of Mold Design On Aluminum Die Casting
1. Proper Mold Design Guarantees Smooth Material Flow
A well-designed mold ensures that molten aluminum can flow smoothly into the cavity, resulting in a uniform fill and reducing the risk of defects.
Mold design in aluminum die casting plays a vital role in ensuring smooth material flow, which is crucial for producing high-quality parts with uniform fills and minimal defects.
Several factors including the following, contribute to this:
- Gating System: A well-designed gating system helps control the flow of molten aluminum into the mold cavity. This involves determining the optimal size, location, and shape of gates, runners, and sprues, ensuring that the material is evenly distributed and fills the cavity completely without turbulence or air entrapment.
- Draft Angles: Incorporating appropriate draft angles in the mold design facilitates the flow of molten aluminum into the cavity and reduces the risk of the material sticking to the mold walls. Draft angles, usually ranging between 1° and 3°, help promote a uniform fill and minimize defects.
- Wall Thickness: Designing the mold with consistent wall thickness ensures that the molten aluminum flows evenly throughout the cavity. This minimizes issues like incomplete filling or solidification problems that may arise due to thin or overly thick walls.
- Venting and Overflow: Adequate venting and overflow channels in the mold design allow air and gases to escape during the casting process. This prevents trapped gases from disrupting the flow of molten aluminum, reducing the likelihood of porosity and other gas-related defects.
- Part Geometry: A mold designed with simplified part geometry, including fillets and radii at sharp corners, promotes smooth material flow and minimizes the chances of turbulence or voids in the cast part.
2. Accurate Mold Design Facilitates Proper Cooling and Solidification
A mold designed with efficient cooling channels enables consistent and controlled cooling of the aluminum, ensuring that the part solidifies properly and maintains its desired shape.
By incorporating efficient cooling channels in the mold, designers can facilitate consistent and controlled cooling of the molten aluminum, promoting the formation of a solid, dimensionally accurate part.
Cooling channels are strategically placed throughout the mold to help dissipate heat generated during the casting process. These channels enable the transfer of heat from the solidifying aluminum to a cooling medium, such as water or oil, which circulates within the channels. An optimized cooling system ensures that the entire part cools uniformly, minimizing the risk of warping or distortion.
In addition to cooling channel placement, the mold’s material selection also affects the cooling and solidification process. Materials with high thermal conductivity, such as hardened steel, allow for efficient heat transfer and contribute to proper cooling.
Mold design should also account for the natural shrinkage of aluminum as it solidifies. By considering shrinkage rates and incorporating proper allowances into the mold design, designers can ensure that the final part maintains its intended dimensions and tolerances.
3. Minimized Shrinkage and Warping
Mold design in aluminum die casting plays a critical role in minimizing shrinkage and warping of the final part. Shrinkage occurs as the molten aluminum cools and solidifies within the mold, causing the part to contract. Warping, on the other hand, refers to the deformation of the part due to uneven cooling or material stresses.
To minimize these issues, mold designers consider several factors. Consistent wall thickness promotes even cooling, reducing the risk of localized shrinkage and warping. Thinner sections can solidify too quickly, while overly thick sections can retain heat, leading to longer cooling times and an increased likelihood of defects.
Second, designers optimize the placement and size of gates and runners. Gates are the openings through which molten aluminum enters the mold cavity, while runners are the channels that direct the material flow. Properly designed gates and runners facilitate a smooth, uninterrupted flow of molten aluminum, reducing turbulence and ensuring a more uniform solidification process.
Lastly, mold designers carefully plan the cooling channels within the mold. Efficient cooling channels help regulate the temperature within the mold cavity, ensuring consistent and controlled cooling. By managing the cooling rate, mold designers can minimize material stresses and reduce the chances of shrinkage and warping, resulting in a more dimensionally accurate final part.
4. Enhanced Surface Finish
A well-designed mold not only ensures dimensional accuracy but also significantly improves the aesthetics and functionality of the final product. Several factors contribute to a high-quality surface finish:
Smooth Mold Surface:
A meticulously polished mold surface results in a smoother cast part. By reducing surface imperfections and irregularities on the mold, the final aluminum part will have a more uniform and visually appealing surface finish.
Draft Angles:
Incorporating draft angles in the mold design allows for the easier ejection of the cast part and reduces the risk of damage to the part’s surface during ejection. This contributes to a cleaner, smoother surface finish.
Parting Lines:
Thoughtful placement of parting lines, where the two halves of the mold meet, minimizes flash (excess material) and ensures a clean, precise seam on the cast part. This helps maintain a consistent and attractive surface finish.
Venting and Overflow Channels:
Properly designed venting and overflow channels allow air and gases to escape during the casting process, reducing the likelihood of gas-related defects, such as porosity or blisters, which can negatively impact the surface finish.
Temperature Control:
Accurate temperature control during casting ensures consistent material flow and minimizes defects like cold shuts, where two fronts of molten metal meet but do not fuse properly. By maintaining the optimal temperature, the cast part will have a smoother, more uniform surface.
Ideally, a thoughtful mold design in aluminum die casting is essential for achieving an enhanced surface finish. By considering factors like mold surface quality, draft angles, parting lines, venting, and temperature control, manufacturers can produce aluminum parts with a superior surface finish that meets both aesthetic and functional requirements.
Conclusion
In conclusion, mold design is a critical aspect of aluminum die casting, with a direct influence on part quality, performance, and cost-effectiveness.

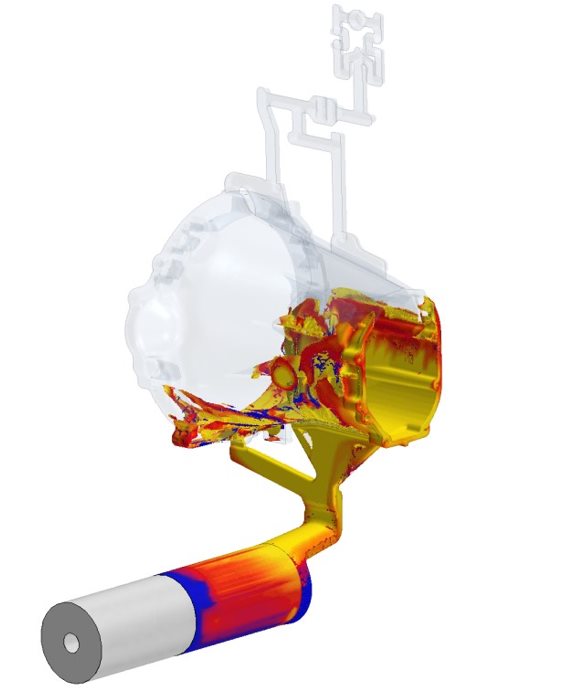

By carefully considering factors such as draft angles, wall thickness, parting lines, ejector pins, and venting, as well as leveraging simulation tools and fostering collaboration between designers and manufacturers, a well-designed mold can yield high-quality aluminum parts.
Investing time and resources in optimizing mold design not only leads to superior surface finishes but also ensures the structural integrity and dimensional accuracy of the final product, contributing to the overall success of your aluminum die casting projects.
